Transformer metering module
Transformer metering module

    The design of this product refers to the standard design of intelligent electric energy meters, and adopts the SOC chip that is mass-produced and connected to the network in the national electric energy meter market, which meets the specification requirements of intelligent electric meters. The metering module is based on a high-performance low-power professional metering Soc chip.

Related products

    The design of this product refers to the standard design of intelligent electric energy meters, and adopts the SOC chip that is mass-produced and connected to the network in the national electric energy meter market, which meets the specification requirements of intelligent electric meters. The metering module is based on a high-performance low-power professional metering Soc chip. In the current 5000:1 dynamic range, the active metering error is less than 0.1%, and in the current 1000:1 dynamic range, the voltage/current effective value metering error is less than 0.5%, providing high-precision metering for the metering module.


software functions

    1. Support real-time recording of accumulated electric energy

    2. Support real-time data acquisition of voltage/current/active, reactive, apparent power/frequency/power factors.

    3. Support active reporting of power and accumulated power data every 5 minutes and hour (optional)

    4. Support active reporting of overvoltage, undervoltage and overload abnormal states

    5. Support UART communication protocol for convenient communication

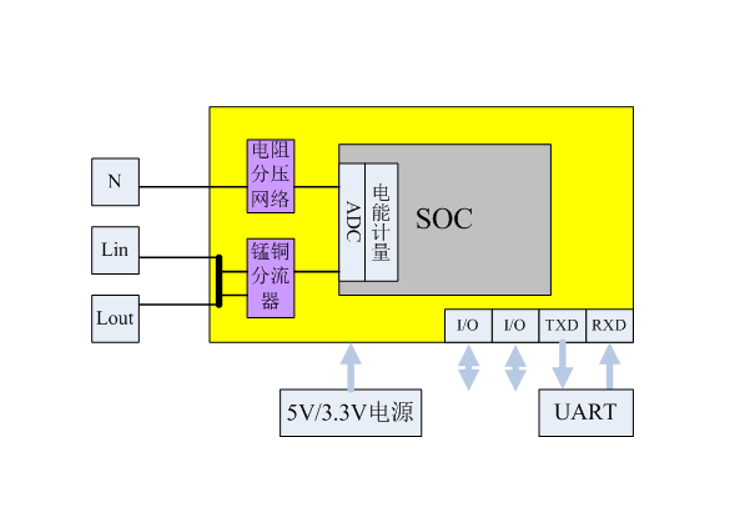

product frame diagram

互感器式计量模块

    The metering module measures the real-time current at the load end by collecting the L live wire current through the manganese copper shunt, and measures the real-time voltage when the load works through the voltage between the resistance partial voltage Network acquisition L and the N wire. The metering module needs external 5V/3.3V power supply. The real-time power consumption information collected by the metering module can be read by an external system in real time through UART. The metering module also has 2 IO ports for other applications.

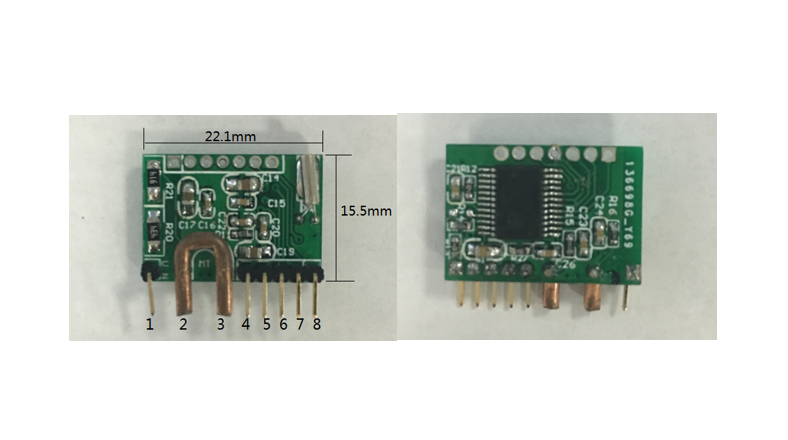

Products in kind

    Product size: length 22.1mm* height 15.5mm* width 10 mm.

互感器式计量模块

application scenario

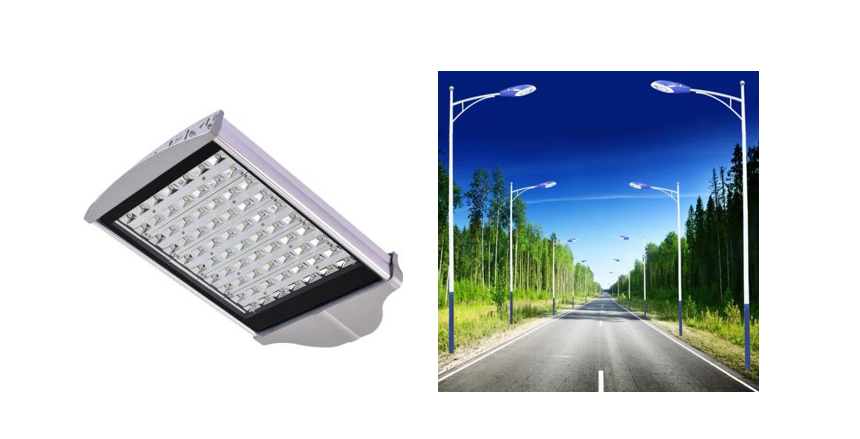

    (1) Power consumption monitoring, fault prompt and safety protection applied to Intelligent street lamp.

互感器式计量模块

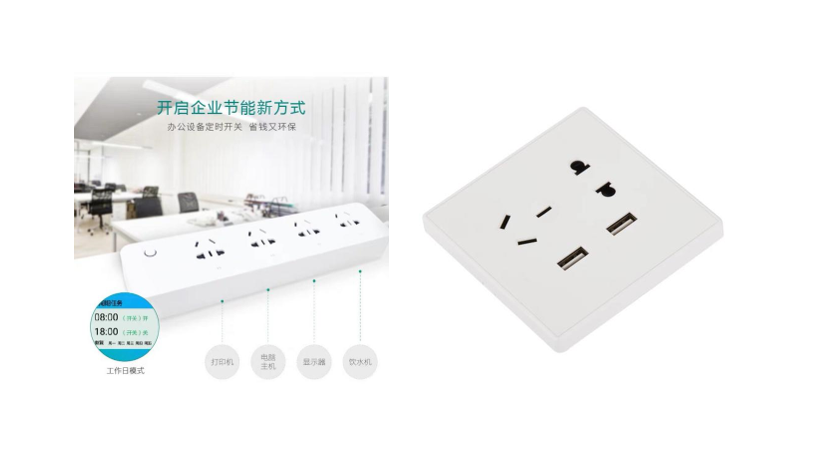

    (2) It shall be applied to intelligent metering strip (socket) to monitor the power consumption of electrical equipment.

互感器式计量模块

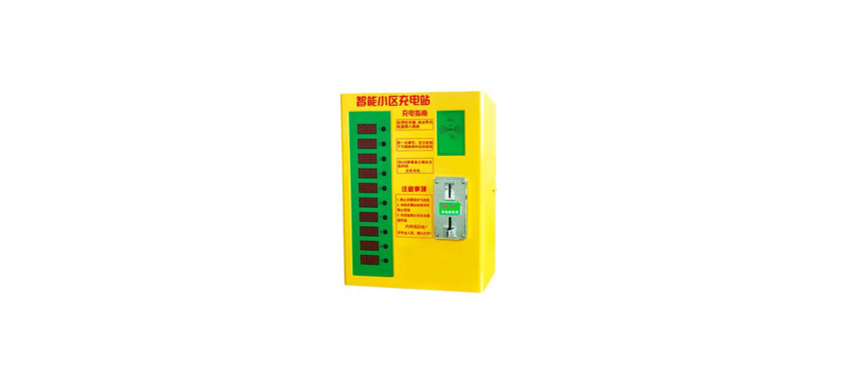

    (3) It is applied to the electric vehicle Charging pile for electricity metering, which is convenient for charging.

互感器式计量模块
